Product Description
| Wilo Atmos TERA SCH is an axial sectional pump used for large-scale fluid transportation, playing an important role in water supply, industrial water and other fields. Fluid temperature :-20 °C to +120 °C Mains connection :3~400 V, 50 Hz Nominal diameters on the suction side: DN 150 to DN 600 on the pressure side: DN 125 to DN 450 Max. operating pressure: PN 10, PN 16 Aplication field :Wilo Atmos TERA SCH is widely used in power plants, water plants, municipal drinking water supply networks, cooling water and industrial water supply for industrial facilities, agricultural irrigation and other fields, playing a key role in various systems that require large amounts of fluid transport and pressurization. |  |
Design

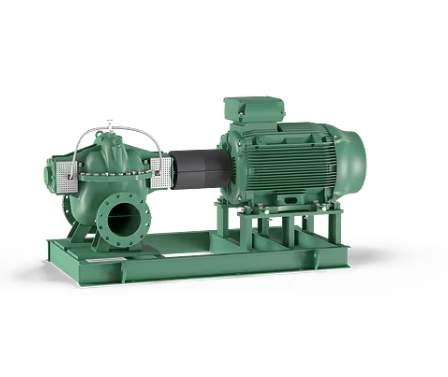

Pump with axially split housing mounted on a base frame
Application
- Raw water intake, pressure boosting and general transport in power plants, waterworks and municipal drinking water supply networks
- Cooling water and industrial water supply in power plants and industrial facilities
- Irrigation in professional irrigation/agriculture
- Pumping of heating water (in accordance with VDI 2035 Germany) and water/glycol mixtures
-
Typekey
| Example: | Atmos TERA-SCH 250/360-75/4-L1 |
| Atmos | Product family |
| TERA | Series |
| SCH | Construction (splitcase pump, horizontal) |
| 250 | Nominal diameter DN of pressure port |
| 360 | Nominal diameter of the impeller in mm |
| 75 | Rated motor power P2 in kW |
| 4 | Number of poles |
| L1 | Variant code (L1 = bronze impeller) |
Technical data
- Fluid temperature -20 °C to +120 °C
- Mains connection 3~400 V, 50 Hz
- Nominal diameters
- on the suction side: DN 150 to DN 600
- on the pressure side: DN 125 to DN 450
- Max. operating pressure: PN 10, PN 16
-
Materials
- Pump housing: EN-GJL-250
- Impeller: G-CuSn10
- Shaft: X12Cr13
-
Construction
- Centrifugal pump with axially split housing, available in single-stage design
- Delivered as complete unit (pump with coupling, coupling guard, motor and baseplate) or without motor or only pump hydraulics
- Shaft sealing with mechanical seal or stuffing box packing
- 2-, 4- and 6-pole motors; IE3-standard to 1000 kW (IE4 on request)
- Welded steel frame
-
Scope of delivery
- Bare shaft pump or with coupling or as complete unit
- Installation and operating instructions
