Product Description

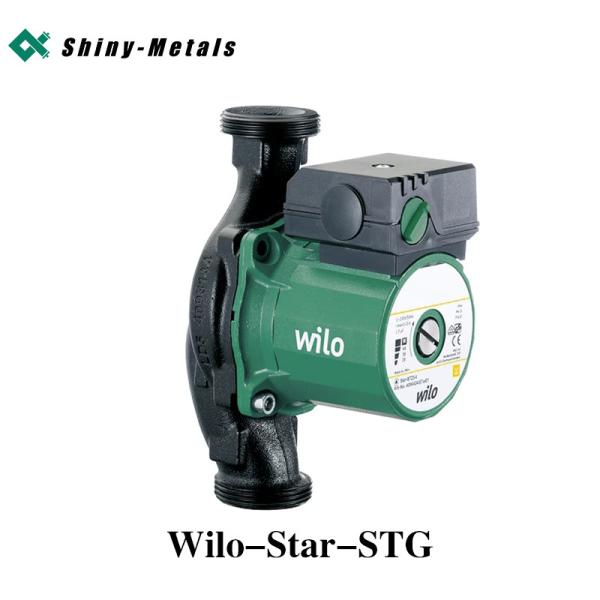

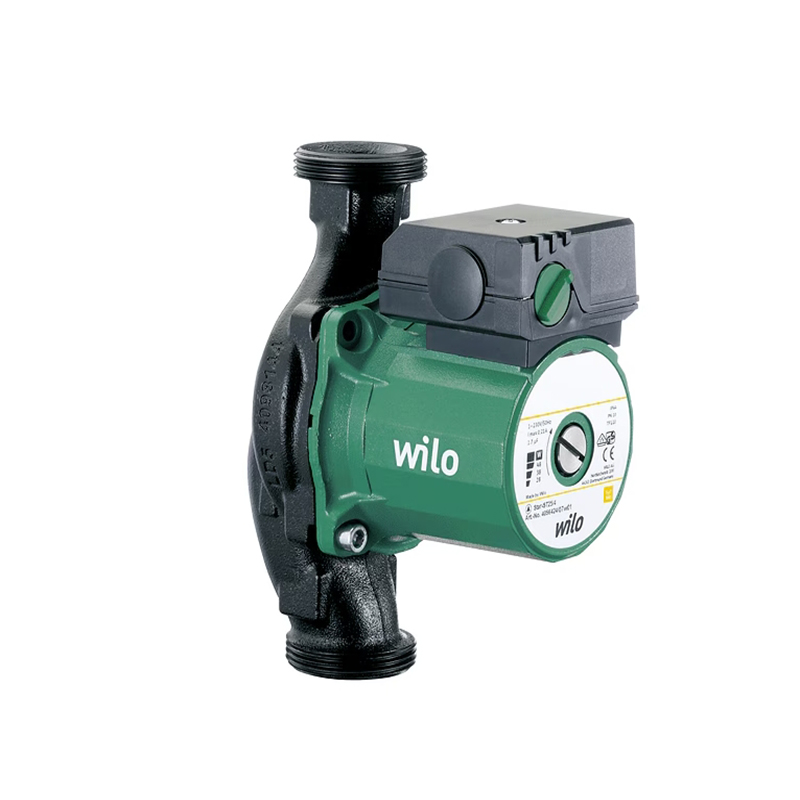

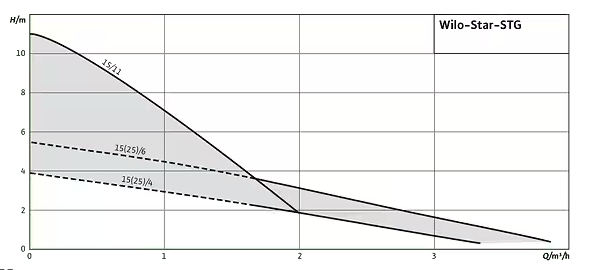

| The Wilo Star STG circulation pump has a special hydraulic design, and the pump casing has wrench joints for easy installation. Flow range : < 3.5m³/h Lift range : ≤ 11m Max.operating pressure at different fluid temperature : 10bar Temperature range :-10 °C to +110 °C Aplication field : Wilo Star STG is a standard pump for primary circuits in solar and geothermal energy systems. |  |
Your advantages
- Special hydraulics for use in solar and geothermal energy systems
- Pump housing with wrench attachment point
- Pump housing with cataphoretic coating for preventing corrosion due to condensation formation
|
Design
Glandless circulator with threaded connection. Preselectable speed stages for power adjustment
Application
Primary circuits of solar and geothermal systems
Equipment/function
Operating modes
Manual functions
- Setting of the speed stages: 3 speed stages
Equipment
- Wrench attachment point on pump body (only for nominal diameter of DN 25/DN 30)
- Cable inlet in possible on both sides
- Quick connection with spring clips
- Blocking current-proof motor
Typekey
| Example: | Star STG 25/6 |
| Star-STG | Standard pump for solar and geothermal energy systems |
| 25/ | Nominal diameter Rp 1 |
Technical data
- Permissible temperature range -10°C to +110 °C, in short-time duty (2 h) +120 °C
- Mains connection 1~230 V, 50 Hz
- Protection class IP44
- Screwed connection Rp ½, Rp 1 and Rp 1¼
- Max. operating pressure 10 bar
-
Materials
- Pump housing: Grey cast iron
- Impeller: Polypropylene
- Shaft: stainless steel
- Bearing: Carbon, metal impregnated
-
Scope of delivery
- Pump
- Gaskets for threaded connection
- Installation and operating instructions
-
Accessories
- Screwed connections
- Adapter fittings
- Thermal insulation shells
