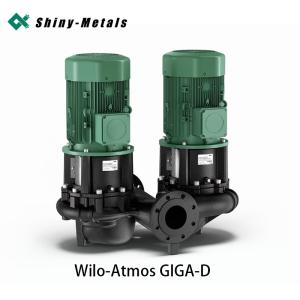

Universal Glanded Water Circulation Pump Multistage Booster Wilo Atmos GIGA-D

Name: Universal Glanded Water Circulation Pump Multistage Booster Wilo Atmos GIGAD
Brand: Wilo
Price: 1 USD

China Universal Glanded Water Circulation Pump Multistage Booster Wilo Atmos GIGA-D wholesale

Brand Name : Wilo

Model Number : Wilo-Atmos GIGA-D

MOQ : 1

Price : Negotiable

Payment Terms : L/C,D/A,D/P,MoneyGram,Western Union,T/T

Supply Ability : Peak Season Lead Time: 1-3 months Off Season Lead Time: 1-3 months

Delivery Time : within 15 workdays

Packaging Details : Wooden Box

Permitted temperature range of the fluid : -20 °C to +140 °C

Max. ambient temperature : 40 °C

Mains connection : 3~400 V, 50 Hz (others on request)

Protection class : IP55

Nominal diameter : DN 32 to DN 200

Standard version for operating pressure : 13 bar (up to +140 °C) / 16 bar (up to +120 °C)

Maximum head : 80h/m

Maximum.flow : 650m³/H

Contact Now

Wilo-Atmos GIGA-D Suitable For Heating Air Conditioning And Cooling Applications In Large Buildings

The universal glanded pump for heating, air-conditioning and cooling applications in large buildings.

The Wilo-Atmos GIGA-D offers a wide range of components and materials for a wide variety of applications. It can pump different fluids at temperatures from -20 °C to +140 °C making it particularly suitable for air conditioning and cooling applications. Any condensate that forms can be selectively discharged via an outlet. Equipped with state-of-the-art pump hydraulics and IE3 motors, the pump is as reliable as it is energy-saving. The cast components with corrosion-resistant cataphoretic coating also ensure a long service life.

Universal Glanded Water Circulation Pump Multistage Booster Wilo Atmos GIGA-D

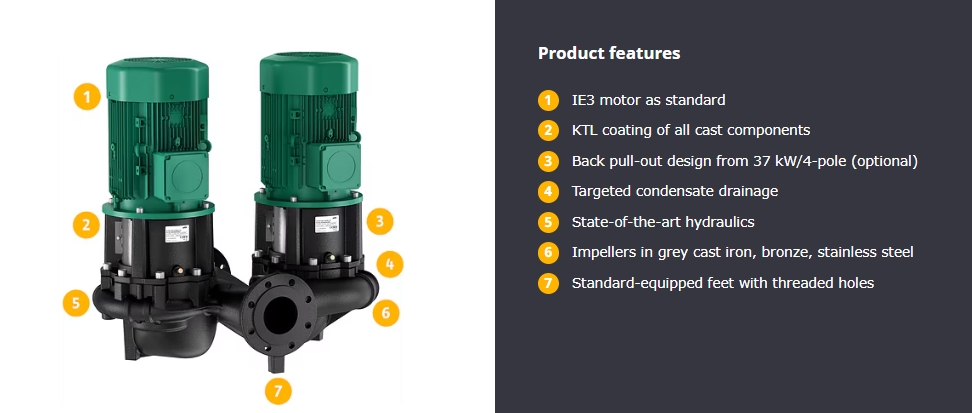

Your advantages

State-of-the-art pump hydraulics and IE3/IE4 motor technology for reliable and energy saving operation
Long service life thanks to corrosion-resistant cataphoretic coating of all cast components
Targeted discharge of condensate when used in air-conditioning systems and chillers
Easy installation with the possibility of securing the pump feet for maximum stability
Can be used in main/standby operation or peak-load operation (with an external auxiliary device)

Universal Glanded Water Circulation Pump Multistage Booster Wilo Atmos GIGA-D

Environmentally friendly features

State-of-the-art pump hydraulics and usage of IE3/IE4 motors ensure energy savings
Efficient design of cast iron components for lowest possible weight
Sustainable and carbon-neutral production and processes in our European factories

Design

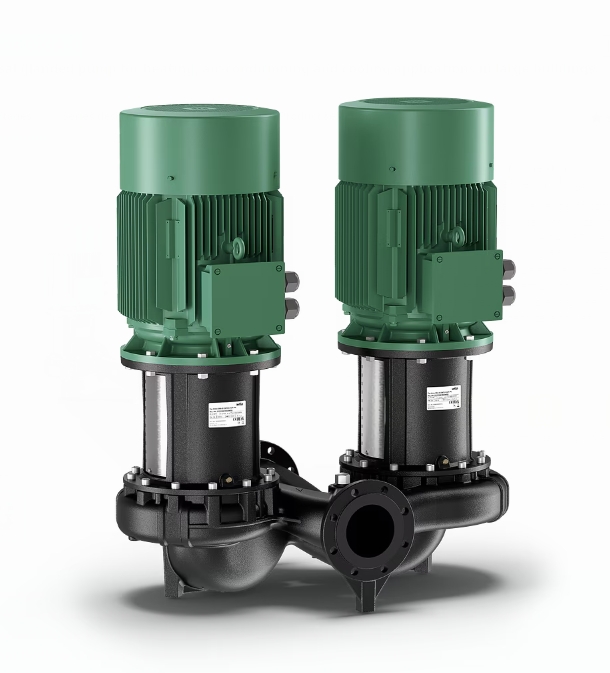

Glanded twin-head pump in in-line design with flange connection

Application

The pumping of heating water (in accordance with VDI 2035), chilled water and water-glycol mixtures without abrasive substances in heating, chilled water and cooling systems.

Typekey

Example	Atmos GIGA-D 40/160-5.5/2
D	In-line twin-head pump
40	Nominal diameter DN of the pipe connection
160	Nominal impeller diameter
5.5	Rated power P2 in kW
2	Number of poles

Technical data

Permitted temperature range of the fluid: -20 °C to +140 °C
Max. ambient temperature 40 °C
Mechanical seal for pumping water up to Tmax = +140 °C. Up to T ≤ +40 °C, a glycol admixture of 20 % to 40 % by volume is permissible. An alternative mechanical seal must be provided for water-glycol mixtures with a glycol content of > 40% to max. 50% by volume and a fluid temperature of > +40 °C to max. +120 °C or other fluids that differ from water. When using water-glycol mixtures, the use of an S1 variant with a corresponding mechanical seal is generally recommended.
Mains connection 3~400 V, 50 Hz (others on request)
Protection class IP55
Nominal diameter DN 32 to DN 200
Standard version for operating pressure: 13 bar (up to +140 °C) / 16 bar (up to +120 °C)

Materials

Pump housing and lantern: Standard: EN-GJL-250;
Impeller: Standard: EN-GJL-200; special version: Bronze CuSn 10, stainless steel 1.4408
Shaft: 1.4122
Mechanical seal: AQEGG; other mechanical seals on request

Construction

Single-stage, low-pressure double pump in in-line design with

Switchover valve
Mechanical seal
Flange connection with pressure measuring connection R 1/8
Lantern
Coupling
IEC standard motor

Scope of delivery

Pump
Installation and operating instructions

Options

…-L1 variant with bronze impeller (at additional charge)
…-L4 variant with stainless steel impeller (at additional charge)
...-P6 variant in back pull-out design and with cartridge mechanical seal
Other voltages and frequencies as well as ATEX approval on request
