Grundfos Cr 32-14-2 Vertical Multistage Centrifugal Pump for Commercial Water Pressure Boosting

CR 32-14-2 A-F-A-E-HQQE
Vertical multistage centrifugal pump with inlet and outlet on the same horizontal plane (in-line). The pump head and base are made of cast iron, while all other liquid-contact components are manufactured from stainless steel. The cartridge-type shaft seal enhances the machine's reliability and operational safety, making maintenance more straightforward. Electrical energy is transmitted via a split coupling. Pipe connections are achieved through DIN flanges. The pump is equipped with a three-phase asynchronous motor featuring a cooling fan and a foot bracket.

CR 32-14-2 A-F-A-E-HQQE Number: 98704370 Applications: Commercial heating Commercial air conditioning Commercial water pressure boosting District heating District cooling Machining Industrial cleaning processes Process water distribution Heating supply Refrigeration Industrial water supply and transportation Industrial wastewater Process water treatment Desalination Surface water intake Drinking water treatment Municipal water transmission and distribution Irrigation Solar water solutions Community and building water supply Vertical multistage centrifugal pump

• Liquid conveyed: Water
• Liquid temperature range: -30 .. 120 °C
• Liquid temperature during operation: 20 °C
• Density: 998.2 kg/m³

• Pump speed basis: 2951 rpm
• Rated flow rate: 30 m³/h
• Rated head: 212 m
• Pump orientation: Vertical
• Shaft seal configuration: Single
• Main shaft seal: HQQE
• Shaft seal code: HQQE
• Approvals: CE, EAC, UKCA, SEPRO
• Drinking water certifications: WRAS, ACS
• Curve tolerance: ISO9906:2012 3B

• Base: Cast iron
  • Base standards: EN 1563 EN-GJS-500-7 / ASTM A536 80-55-06
• Impeller: Stainless steel
  • Impeller material: EN 1.4301 / AISI 304
• Bearings: SIC
• Support bearings: Graflon

• Maximum ambient temperature: 55 °C
• Maximum operating pressure: 30 bar
• Maximum pressure at specified temperatures:
  • 30 bar / 120 °C
  • 30 bar / -30 °C
• Connection types: DIN
• Inlet size: DN 65
• Outlet size: DN 65
• Pressure rating for pipe connection: PN 40
• Motor flange size: FF350

• Motor standard: IEC
• Motor model: INNOMOTICS
• Rated power - P2: 30 kW
• Pump required power (P2): 30 kW
• Power supply frequency: 50 Hz

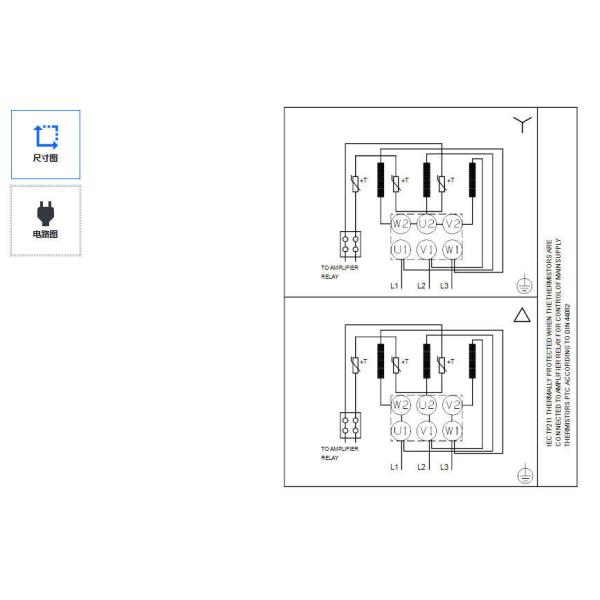

• Rated voltage: 3 x 380D/660Y V
• Rated current: 55.0/31.5 A
• Starting current: 780 %
• Cos phi - Power factor: 0.89
• Rated speed: 2955 rpm
• Efficiency: IE3 93.3%
• IE efficiency class: IE3
• Motor full-load efficiency: 93.3 %
• Motor efficiency at 3/4 load: 93.4 %
• Motor efficiency at 1/2 load: 92.6 %
• Motor pole count: 2
• Enclosure rating (IEC 34-5): IP55
• Insulation class (IEC 85): F
• Motor number: M1U05332

• Frequency converter: None

• Junction box position: 6
• Minimum Efficiency Index, MEI ≥: 0.70
• Net weight: 346 kg
• Gross weight: 466 kg
• Transport volume: 0.001 m³
